a blockbuster new product SU100 solar pump Inverter is launched
Mainly Features of solar pump system:
Low carbon economy, In-built MPPT with high efficiency , Pump specific protection, Remote monitoring, Best off grid solution, Perfect stable frequency output
Applications:

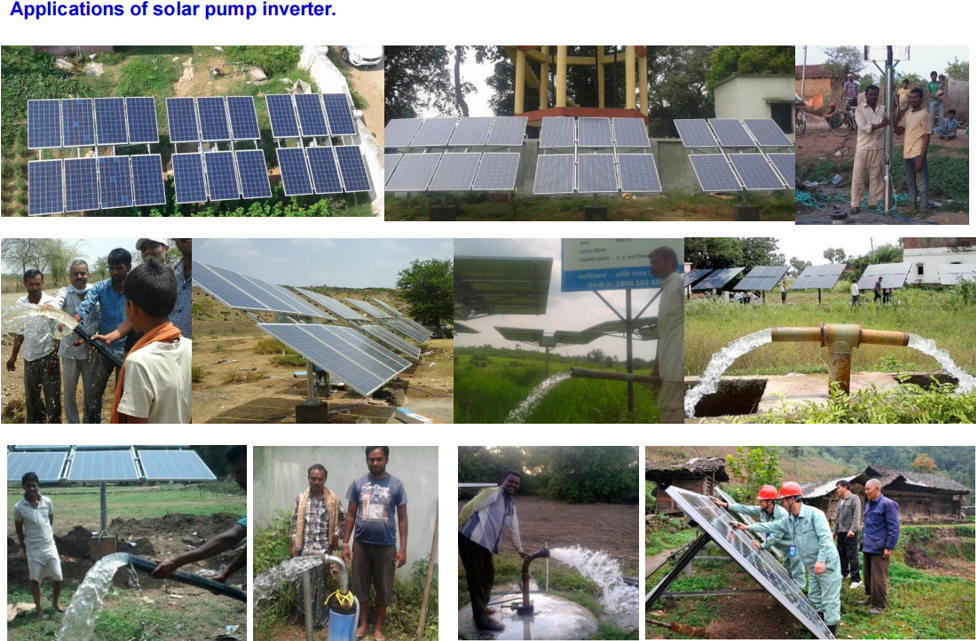

Ground water lowering, Irrigation systems , Industrial Application, Drip irrigation& sprinkler, Tank/ cistern filling, Wildlife refuge, Rural water supply for ranches, cabins, and cottages, Fountains.
SU100 solar pump inverter nameplate
Field | Identification | Label description |
Inverter type |
| SU series solar pump inverter inverter |
Voltage classification |
| D:DC input；T: AC380V input |
Input Voltage level |
| 1：DC90V-400V, Suitable for driving pumps with 110VAC 2：DC150V-450V, Suitable for driving pumps with 220VAC 3：DC250V-780V , Suitable for driving pumps with 380VAC |
Adaptive motor power |
| 1R5：1.5KW 2R2：2.2KW 4：4KW 5R5：5.5KW 7R5：7.5KW 22：22KW |
Inverter type |
| G：General purpose P：Fan pump type |
Brake function |
| B:Equipped with brake function |
Model List
Models | Rate current (A) | Output voltage ( 3PH VAC) | Applicable for pumps(KW) | Recommend Voc voltage (Vdc) |
Mini type D1:90V DC to 400V DC or 110V±15% AC Input, 50/60Hz, 3 Phase 0-110Vac ouptut | ||||
SU10M-D1-R75G-B | 7A | 0-110V | 0.75kw | 175V to 380V |
SU10M-D1-1R5G-B | 10A | 0-110V | 1.5kw | 175V to 380V |
Mini type D2：150V DC to 450V DC or 220V±15% AC Input, 50/60Hz, 3 Phase 0-220Vac ouptut | ||||
SU10M-D2-R75G-B | 4A | 0-220V | 0.75kw | 360V to 430V |
SU10M-D2-1R5G-B- | 7A | 0-220V | 1.5kw | 360V to 430V |
SU10M-D2-2R2G-B | 10A | 0-220V | 2.2kw | 360V to 430V |
SU10M-D2-004G-B | 16A | 0-220V | 4.0kw | 360V to 430V |
General type: D3：250V DC to 800V DC or 380V±15% AC input, 50/60Hz, 3 Phase 0-380V/440Vac ouptut | ||||
SU100-D3-R75G-B | 3A | 0-380V/440V | 0.75kw | 620V to 750V |
SU100-D3-1R5G-B | 4A | 0-380V/440V | 1.5kw | 620V to 750V |
SU100-D3-2R2G-B | 6A | 0-380V/440V | 2.2kw | 620V to 750V |
SU100-D3-004G-B | 9.2A | 0-380V/440V | 4.0kw | 620V to 750V |
SU100-D3-5R5G-B | 13A | 0-380V/440V | 5.5kw | 620V to 750V |
SU100-D3-7R5G-B | 17A | 0-380V/440V | 7.5kw | 620V to 750V |
SU100-D3-011G-B | 25A | 0-380V/440V | 11kw | 620V to 750V |
SU100-D3-015G-B | 32A | 0-380V/440V | 15kw | 620V to 750V |
SU100-D3-018G-B | 37A | 0-380V/440V | 18.5kw | 620V to 750V |
SU100-D3-022G-B | 45A | 0-380V/440V | 22kw | 620V to 750V |
SU100-D3-030G | 60A | 0-380V/440V | 30kw | 620V to 750V |
SU100-D3-037G | 75A | 0-380V/440V | 37kw | 620V to 750V |
SU100-D3-045G | 90A | 0-380V/440V | 45kw | 620V to 750V |
SU100-D3-055G | 112A | 0-380V/440V | 55kw | 620V to 750V |
SU100-D3-075G | 150A | 0-380V/440V | 75kw | 620V to 750V |
SU100-D3-090G | 176A | 0-380V/440V | 93kw | 620V to 750V |
SU100-D3-110G | 210A | 0-380V/440V | 110kw | 620V to 750V |
SU100-D3-132G | 253A | 0-380V/440V | 132kw | 620V to 750V |
SU100-D3-160G | 304A | 0-380V/440V | 160kw | 620V to 750V |
SU100-D3-**G | **A | 0-380V/440V | 185kw | 620V to 750V |
Technical Specification
Item | Specification | |
Power input | Voltage,frequency | D1: 90V DC to 400V DC or 110V±15% AC, 50/60Hz S D2: 150V DC to 450V DC or 220V±15% AC, 50/60Hz; D3: 250V DC to 750V DC or 380V±15% AC, 50/60Hz above 30kw: 350V DC to 750V DC or 380V±15% AC, 50/60Hz |
Allowable fluctuations | voltage unbalance rate:<3%; Frequency:±5%; aberration rate: as IEC61800-2 required | |
Power factor | ≥0.94(with DC reactor) | |
Efficiency | ≥96% | |
Output | Output voltage | Output under rated condition: 3 phase, 0～input voltage, inaccuracy<5% |
Output frequency range | G type:0～600Hz | |
Output frequency accuracy | Max frequency ±0.5% | |
Overload capacity | G type: 150% rated current/1 min, 180% rated current/10s, 200% rated current/0.5s | |
Main control performance | Motor control mode | V/F without PG , VC without PG , VC with PG |
Speed control range | Vector control without PG, rated load 1:100;Vector control with PG, rated load 1:1000; | |
Steady speed accuracy | VC without PG: ≤2% rated synchronized speed; | |
VC with PG: ≤0.05% rated synchronized speed | ||
Starting torque | VC without PG: when 0.5Hz, 150% rated torque; | |
VC with PG: when 0Hz, 200% rated torque | ||
Torque response | VC without PG: ≤20ms; VC with PG: ≤10ms. | |
Frequency accuracy | Digit setting: max frequency×±0.01%; | |
Analog setting: max frequency×±0.2% | ||
Frequency resolution | Digital setting: 0.01Hz; | |
Analog setting: maximum frequency × 0.05% | ||
Product basic functions | DC braking capacity | Starting frequency:0.00～50.00Hz; Braking time:0.0～60.0s; |
Braking current:0.0～150.0% rated current | ||
Torque boost capacity | Auto torque upgrade 0.0%～100.0%; | |
Manual torque upgrade 0.0%～30.0% | ||
V/F curve | 4 modes: one linearity torque characteristic curve ,one self-setting V/F curve mode, one drop torque characteristic curve (1.1- 2.0 powers),and square V/F curve mode. | |
Product basic functions | Acceleration/Deceleration curve | 2 modes: linear Acceleration/Deceleration and S curve Acceleration/Deceleration. |
4 sets of ACC/DEC, time unit 0.01s selectable, longest time: 650.00s. | ||
Rated output voltage | Rely on power supply voltage compensate function, while motor rated voltage is 100%, set it at the range of 50-100%(output can not over input voltage). | |
Voltageauto-adjustment | While power supply voltage fluctuates, it can auto-keep constant output voltage. | |
Auto energy-saving running | While under V/F control mode, according to load situation, auto-optimize output voltage to save energy. | |
Standard functions | PID control, speed track, power off restart, jump frequency, upper/lower frequency limit control, program operation, multi- speed, RS485, analog output, frequency impulse output. | |
Frequency setting channels | Keyboard digital setting, keyboard potentiometer ,Analog voltage/current terminal AI1、AI2, Communication given and multi-channel terminal selection,Main and auxiliary channel combination, expansion card, supporting different modes switch. | |
Feedback input channel | Voltage/Current Terminal AI1, Voltage/Current Terminal AI12, Communication | |
given, pulse input X5. | ||
Running command channel | Operation panel given、external terminal given, communication given, expansion card given. | |
Input command signal | Start, stop, FWD/REV, JOG, multi-step speed, reset, ACC/DEC time selection, frequency given channel selection, exterior fault alarm. | |
Protective function | Overvoltage, under-voltage, current limit, over-current, overload, electric thermal relay, overheat, overvoltage stall, data protection, rapid speed protection, input/output phase failure protection. | |
Environment | Install place | altitude ≤ 1000m,above 1000m down the rated amount, each increase of 100m down the ratedmount of 1%;no condensation, ice ,rain, snow, hail; solar radiation below 700W/㎡, air pressure 70-106 kPa. |
Temperature, humidity | -10 ～+ 50℃, derating above 40℃, maximum temperature 60℃(no-load operation)5% to 95% RH (non-condensing) | |
Vibration | When 9～200Hz, 5.9m/s2(0.6g) | |
Storage temperature | -30 ～+60℃ | |
Protection grade | IP20 | |
Cooling method | Forced air cooling | |
SU100 Solar pump inverter--------------Software design
Software updated with MPPT design, now SU100 inverter performance is better that ABB, Lorentz.
Control mode: VF for induction motor pumps, open loop vector control for PMSM high speed pumps
MPPT function: always performance MPPT for gain highest efficiency
CVT: When sunlight is good, can select CVT control for excellent stable frequency output.
Dry run function: When little water or no water for pumping to protect pumps.
Maximum current protection: set maximum current protection is available
Minimum solar input power: When low power input, inverter no work
Stop frequency: Lower than stop frequency, inverter no work
Sleep mode: if lower than sleep voltage, inverter go to sleep, it will wake up when DC voltage rise.
Flow and generated energy calculating and monitoring
A lot of fault protection. Short circuit, ground short circuit, phase loss, over current, overheat…
Built in RS485 interface, it is easy to connect GPRS remote controller.
