AD1000-AFE Four-Quadrant Inverter
Technical Specifications

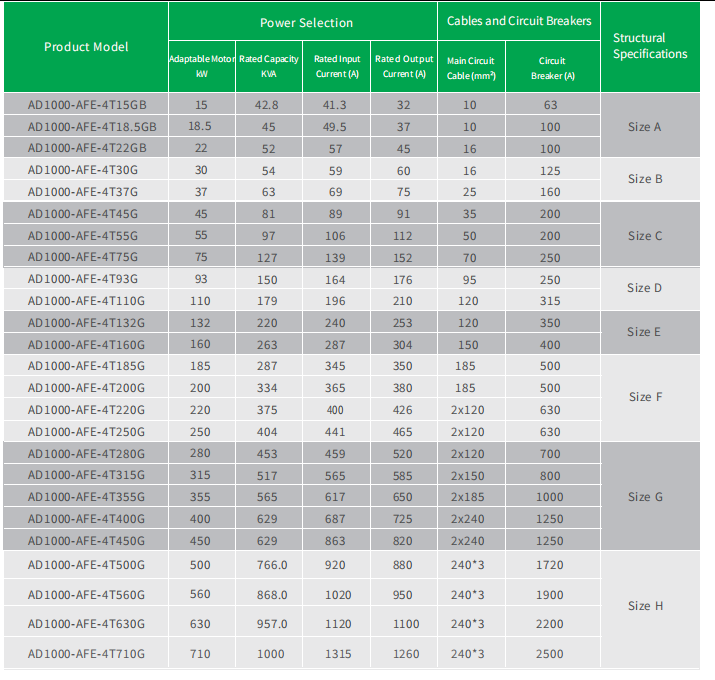

●Power Range: 380V 0.75-710KW
●Input Voltage: 380V±15%
●Communication Methods: Modbus-RITU, Modbus-TCP/IP,
PROFINET, PROFIBUS-DP, CanLink, Canopen, ASI
●Output Frequency: 0.1Hz～400Hz
●Analog Signal Input: 2 channels (AI1/AI2) 0～10V or 0～20mA DC
●Analog Signal Output: 1 channel (AI3) -10～10V DC, 2 channels (AO1/AO2)
●Programmable Input: 7channels (X1～X7) multi-function terminal input
●Collector Output: 2channels, 0～50mA, programmable,
multiple output options available
●Set Voltage Source: 1 channel, +10V, 5mA
●Relay Output: 2channels, programmable, contact rating: 250V AC/3A or 30V DC/1A
●
Provides comprehensive fault protection functions (including
overvoltage protection, undervoltage protection, overcurrent
protection, module protection, heatsink overheating protection, motor
overload protection, external fault protection, etc.), ensuring safety
and reliability.
●
Complete energy regeneration drive: Equipped with a cabinet containing
an energy-regenerative power supply unit, which includes all
components for energy-regenerative operation (including the input-side
filter). The energy-regenerative power supply unit enables energy
conversion between motoring mode and generating mode; the power supply
unit automatically feeds back regenerated energy to the power grid in a
sine wave manner, resulting in low grid-side current harmonics. Since
no braking unit or external braking resistor is required,
installation is simpler; it is more energy-efficient and environmentally
friendly.
● Rich peripheral interfaces to meet various application scenarios.
● Multiple communication methods: Standard MODBUS communication, optional PROFIBUS, supporting multi-machine communication and enabling coordinated control of multiple machines.
● New PWM dead-time compensation technology, which effectively reduces motor noise and motor losses.
● Excellent open-loop and closed-loop vector control performance, significantly improving the dynamics and stability of the system; excellent torque control performance, achieving precise torque control.
A four-quadrant Vector Inverter
is a new type of rectifier that converts alternating current (AC) to
direct current (DC). It is typically connected to an inverter and an
asynchronous motor, used in AC-DC-AC drive electric locomotives, and is
particularly suitable for speed control systems requiring frequent
traction and regenerative braking; high-frequency energy feedback
regenerative braking; and environments with high requirements for grid
power quality, such as speed control systems requiring frequent traction
and regenerative braking.
