IP65 Solar pump inverter
IP65 solar pump inverter
Power range:
3-phase 380～480V / 0.75～11KW
1/3-phase 200～240V / 0.75～2.2KW
Features:
Simple debugging and easy using.
Simple installation with high IP protection.
Up to IP55/IP65 Protection level, good for outdoor independent installation

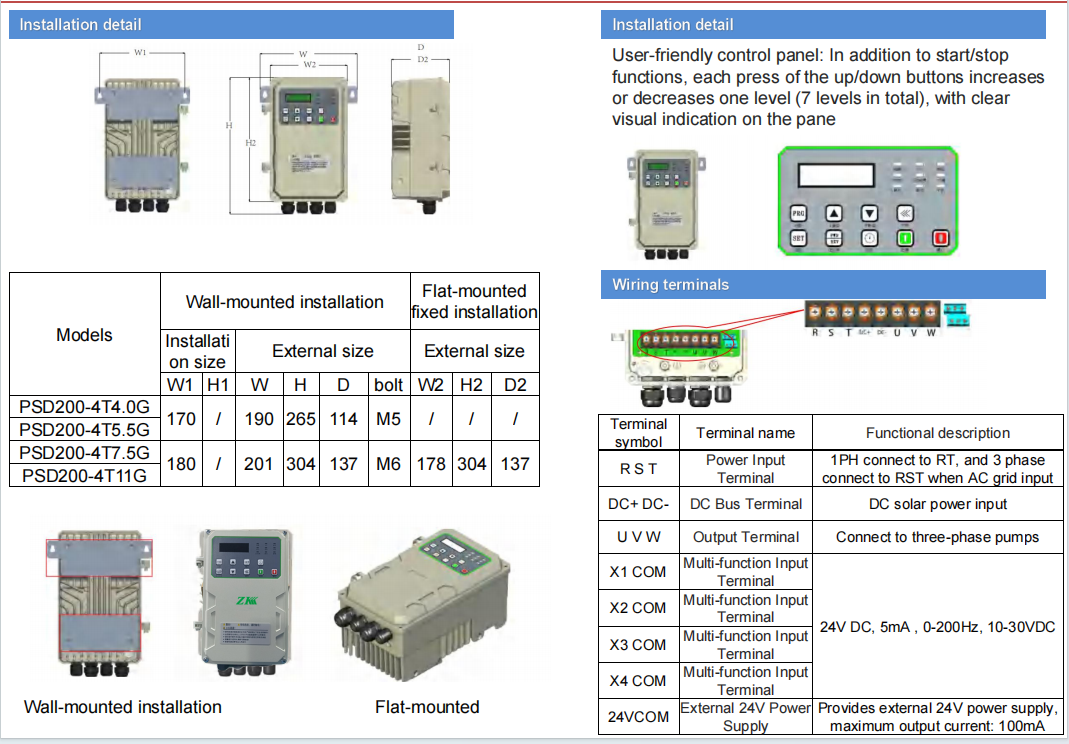

Simple wiring: User-friendly wiring design, users only need to connect according to the wiring instructions
AC/DC manual switchover by built in a switch over
(model -K)
High flexibility: it can be use for VFD when disable the solar function
MPPT function, fast speed drop when sunlight is weak
kinds of pumps protection
Application model:
Single phase: PV110-2S(0.75～2.2)G
Three-phase: PV110-2T(0.75～2.2)G
FI100-4T(0.75～4.0)G
production features
High Protection: With an IP66 protection rating, it can be installed outdoors directly.
High Compatibility: Compatible with both permanent magnet synchronous motors and asynchronous motors.
Easy Installation: Integrated design of the control cabinet and frequency converter eliminates the need for secondary installation.
Low Maintenance: Maintenance-free overall design.
User-Friendly Operation: Start/stop control with 7-speed adjustment via up/down keys.
Quiet and Comfortable: Carrier frequency up to 16kHz ensures natural, noise-free operation.
Smooth Performance: Stable operation delivers the comfort of natural wind.
No Tuning Required: Supports tuning-free operation for synchronous motors.
Comprehensive Protection: Up to 33 protection features, including anti-collision, overcurrent, overvoltage, overload, and ground fault protection.
High-Protection Frequency inverter is a specialized inverter developed for harsh-environment applications, such as steel, petroleum, chemical, fan, water pump, aquaculture, and other specialized industries.
Structurally, it adopts a split-type sealed design with circuit boards coated with professional-grade conformal coating, providing multiple layers of protection. The entire unit is resistant to oxidation, salt spray, mold, high temperatures, humidity, and corrosion, achieving a protection rating of up to IP65, making it suitable for various demanding environmental conditions.
Additionally, it features a built-in temperature detection and alarm function, ensuring safety and effectiveness while significantly extending the service life of the frequency converter.
The cover and base are formed through one-time aluminum die-casting, with a sealing gasket placed at the joint. The seal is compressed when screws are tightened on the cover.
● High-end protection: waterproof panel, waterproof joint,
waterproof enclosure.
● Enhanced sealed cover design, suitable for applications
in harsh environments to extend the service life
● Can be installed without power distribution cabinet,
saving power distribution costs
Ingenious design,latest generation Infineon/Fuji IGBT using
Apply to all series IM and PMSM pumps
IOT system--GPRS module, control by phone and website
IP54 protection--no dead angle of waterproof and dustproof
Hybrid input compatible with DC / AC power input
