The SG830 is a versatile DC-DC power supply module designed for flexible integration into solar power systems.
Dual Mode Operation、Wide Voltage Range: Supports PV input from 150–800 VDC、High-Efficiency MPPT、Flexible Communication、Multiple Installation Options、Comprehensive Protection

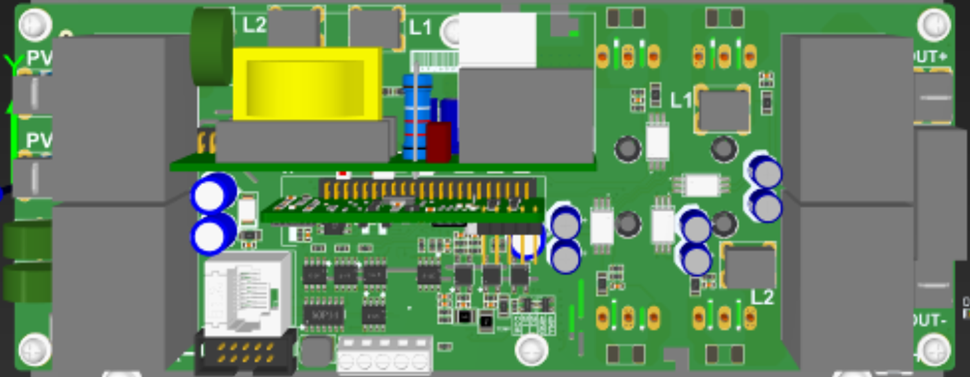

SG830 DC MPPT Booster – High-Efficiency Hybrid Power Solution
The SG830 is a versatile DC-DC power supply module designed for flexible integration into solar power systems. It supports both Boost and Buck modes, allowing seamless adaptation to various voltage requirements. With advanced Constant Voltage (CV) and Constant Current (CC) output control, the SG830 ensures stable and reliable power delivery for a wide range of industrial applications.
Equipped with a built-in MPPT function and a tracking efficiency of up to 99.9%, the SG830 maximizes energy harvest from photovoltaic (PV) panels. It enables hybrid power supply by combining PV power with mains electricity, significantly reducing grid energy consumption and operational costs.
Key Features:
Dual Mode Operation: Boost or Buck mode selectable via software and wiring configuration
Wide Voltage Range: Supports PV input from 150–800 VDC
High-Efficiency MPPT: Up to 99.9% tracking efficiency
Flexible Communication: Modbus/RS485 support with configurable parameters via pluggable keyboard

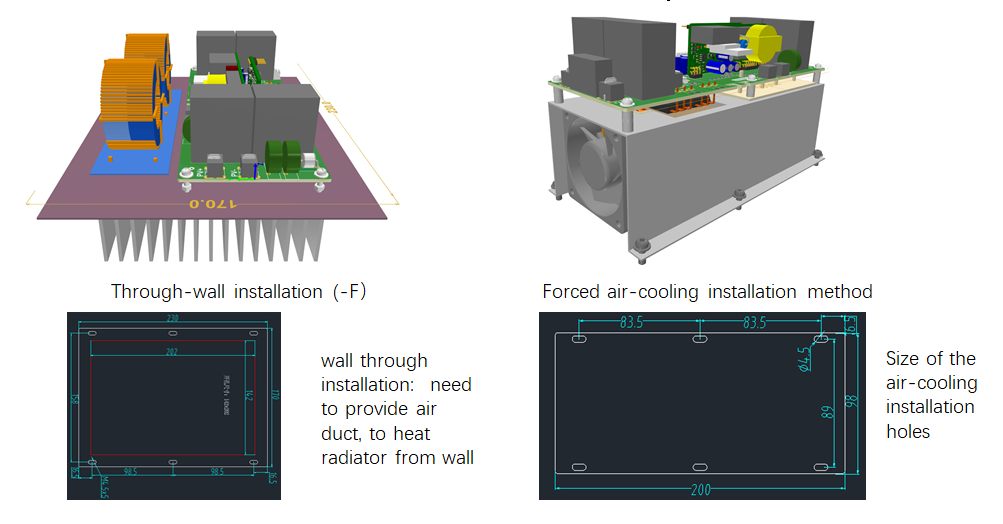

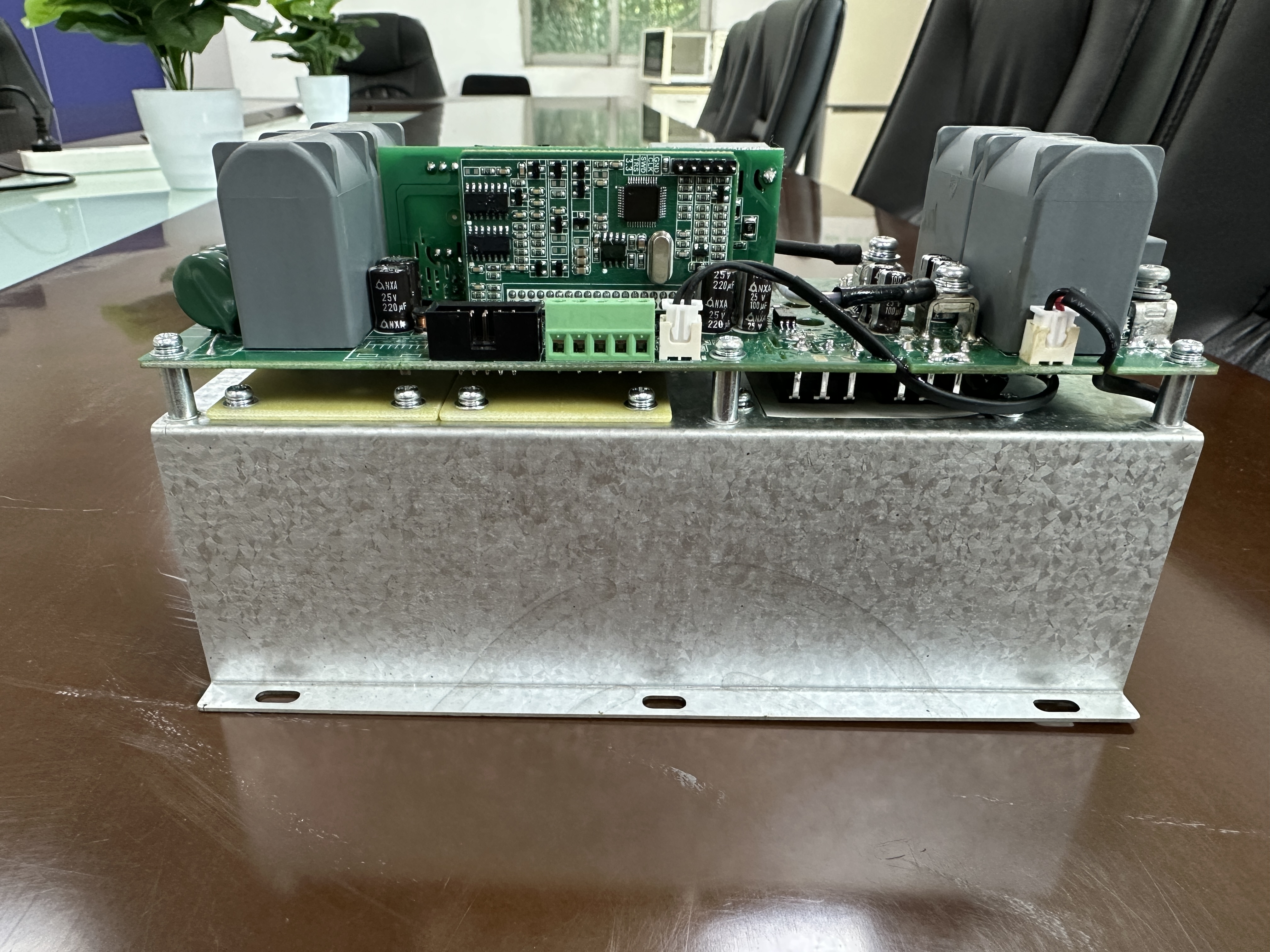

Multiple Installation Options: Through-wall or forced air-cooling installation
Comprehensive Protection: Reverse polarity protection and fault indicators
Application Scenarios:

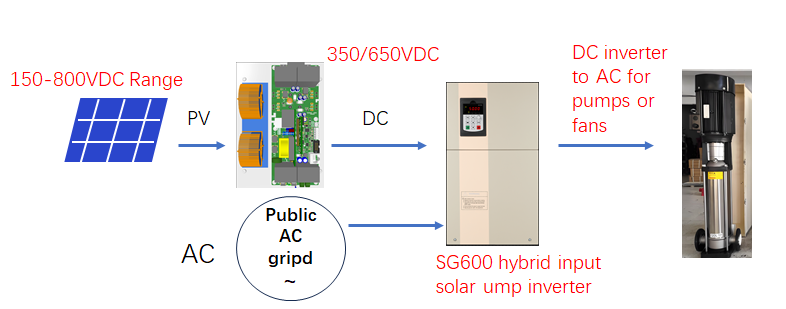

Ideal for integrating solar power into inverter-driven systems such as:
Solar pumps and fans
Hybrid solar inverters (e.g., SG600 series)
Industrial motor drives and frequency converters

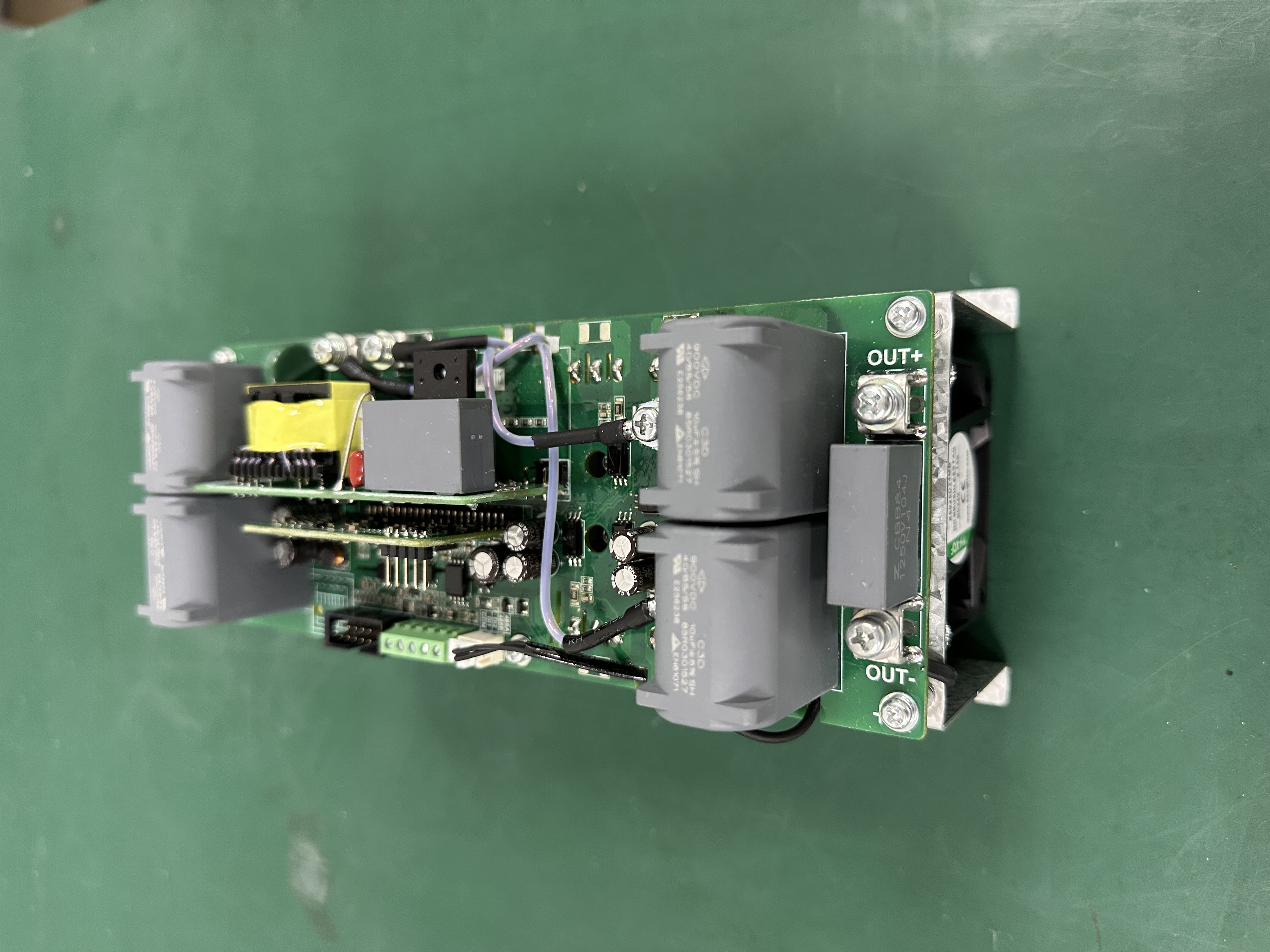

Wiring and Configuration:

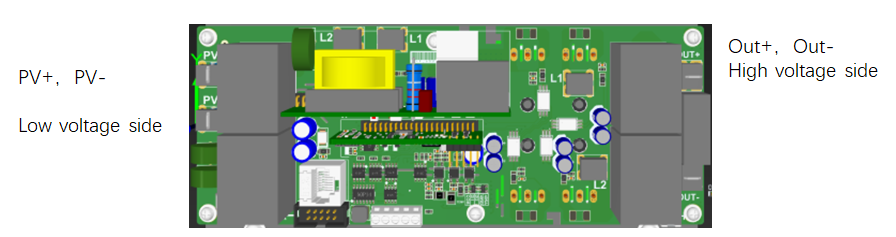

Low Voltage Side (PV+, PV–): Connect directly to PV in Boost mode, or to inverter bus in Buck mode
High Voltage Side (Out+, Out–): Connect to inverter DC bus in Boost mode, or to PV input in Buck mode
Note: Wiring must match software settings. Reverse polarity connection is strictly prohibited to avoid module damage.
Monitoring and Control:
Parameter settings via B0 group codes
Real-time monitoring via U1 group parameters
RS485 communication with Modbus protocol for seamless system integration
DI terminal support for external control and keyboard interface
Indicator Status:
Fast Flash (0.6s): Fault
Slow Flash (2s): Normal standby
Long On: Under-voltage condition

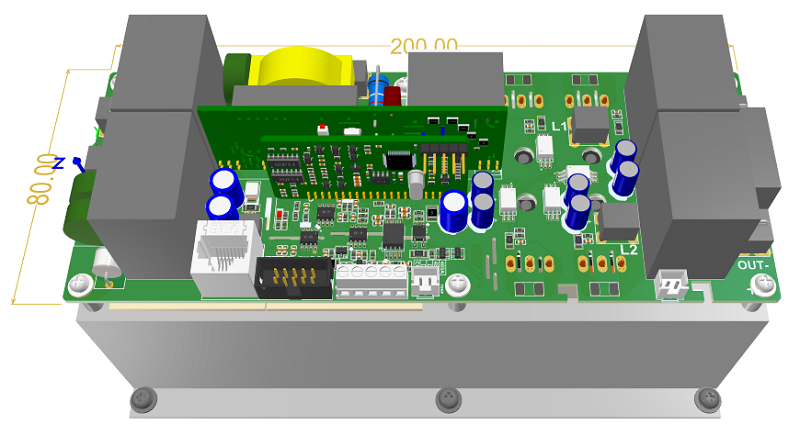

Specification parameters,model classification:
Basic specification parameter table
Parameters | Value | Notes |
Rated voltage Vmp | 500Vdc（Booster） | Inverter working voltage point |
Open circuit voltage Voc | 600Vdc（Booster） | Photovoltaic open-circuit voltage |
Rated current （Low voltage side) | 10A（5KW） |
|
Rated input power | 5KW or 10KW |
|
Transfer efficiency | 95% above |
|
Maximum voltage | 800Vdc | Over voltage point |
Minimum voltage | 150Vdc，200Vdc(hysteresis) | Under voltage point |
MPPT efficiency | >99% |
|
Model Selection Table
Power | Model -L buck ） | Rated current input sdie | Note |
3KW | PH830-3KW-H | 6A | Air-cooled, single inductor |
5KW | PH830-5KW-H | 10A | Air-cooled, single inductor |
8KW | PH830-8KW-H | 16A | Air-cooled, single inductor |
10KW | PH830-10KW-H | 20A | Air-cooled, single inductor |
16KW | PH830-16KW-H | 32A | Air-cooled, double inductor |
The SG830 DC MPPT Booster is the ideal choice for enhancing energy efficiency and system flexibility in solar hybrid applications. Whether for agricultural, industrial, or commercial use, it delivers performance, reliability, and smart control.
