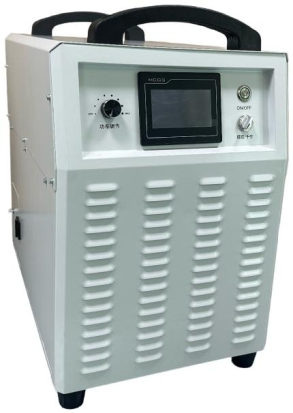

1. Energy Transformation:

2. This equipment transforms conventional 50Hz industrial alternating current into high-frequency AC,laying the fundamental energy source needed to produce magnetic fields in the follow-up process.

3. Magnetic Field Formation:

4. As high-frequency electric current flows through the induction coil,an alternating magnetic field comes into being, with its field strength fluctuating swiftly in line with the frequency of the applied current.

5. Eddy Current Thermal Effect:

6. Positioning an electrically conductive workpiece adjacent to the induction coil triggers fluctuating magnetic flux,which induces eddy currents inside the component.Restricted by the workpiece’s inherent resistance,such eddy currents produce heat and bring about fast temperature elevation.

1. Metallic Thermal Treatment

2. It can be applied in quenching, annealing, tempering and related technological procedures to boost metals’ hardness, toughness and comprehensive mechanical performance.

3. Welding Fabrication

4. Applicable to welding operations of copper, aluminium, silver and assorted metallic materials; it delivers consistent heating on weld zones and optimizes finished welding quality.

5. Forging & Moulding

6. The equipment enables localized heating on rod and sheet metal ends, supplying steady thermal energy to support forging, bending and similar forming procedures.

7. Pipeline Construction & Thermal Fitting

8. It serves preheating of industrial pipelines, post-weld thermal treatment for weld joints, as well as hot fitting and dismantling of motor bearings and various mechanical spare parts.

9. IV.Product Features Introduction:

• Industry-leading wide inductance design

• Designed with widely adjustable inductance ranging from 2μH to 600μH, the electromagnetic induction heating system spans low-inductance configurations for precise localized heating up to high-inductance setups suited for deep penetration heating of bulky workpieces, making it adaptable to various industrial application conditions. Equipped with self-adaptive resonance regulation technology, the unit achieves high-efficiency energy coupling amid varying loads including shifts in metallic workpiece composition and dimension, which greatly boosts the equipment’s universal adaptability and thermal efficiency.

• Integrated isolation transformer

  Nanocrystalline magnetic cores help cut down high-frequency eddy current loss and elevate overall operational efficiency. An isolating transformer can efficiently suppress noise stemming from high-frequency inverters and mitigate electromagnetic interference against the utility grid; furthermore, it electrically separates the output terminal from the mains supply to advance the safety of output circuits.

• Precise temperature control improves process quality.

  --It delivers precise temperature regulation with a tolerance of ±3℃ and can reach an optimal accuracy of up to ±1℃, which fits demanding working conditions including semiconductor processing and precision metal thermal treatment.

• --Non-contact thermal processing prevents workpiece oxidation and dimensional distortion,thereby securing consistent physical properties of processed materials.

• High stability and comprehensive fault mechanisms The equipment supports round-the-clock continuous full-load operation. For the three-phase 400VAC variant,normal running is maintained amid grid voltage swings within ±20%.In addition,the unit is equipped with comprehensive protective functions covering overvoltage,overcurrent,open-phase and over-temperature conditions.

• Safe and reliable, industrial-grade protection design

  This intermediate-frequency induction heating power source is constructed with either standalone air-cooling or full water-cooling configurations.Its printed circuit boards and related electronic parts undergo three-pass conformal coating treatment,enabling reliable deployment in sophisticated operating surroundings including offshore platform sites.

• Data storage

  Real-time display and system storage are available for the heating temperature curve.Operators may retrieve heating records whenever needed,and upon completion of heating processes,all historical thermal data can be exported to a USB storage device for backup.

• Multi-segment process curve

  The system is equipped with diverse control options consisting of constant power mode,power-time curve mode, constant-temperature mode (with the relevant constant-temperature control module supplied as an optional accessory),as well as temperature-time curve mode. Operators are allowed to switch among these options in accordance with varying working circumstances and technical demands.

• Remote control (customized module)

  Built-in WiFi,5G wireless,RS485 as well as TCP/IP MODBUS communication modules are integrated into the equipment to realize remote monitoring and operational control.

• Diverse power control modes

• Output power can be controlled via 0-10V,0-5V,4-20mA,and digital adjustment.

V.MV900 Specifications and Parameters

MV900 Series Specifications

Product wiring diagram（External wiring diagram)

Internal control board wiring diagram

Installation Environment:

1) Ambient Temperature: Ambient temperature has a significant impact on the lifespan of the variable frequency induction heating power supply. The operating temperature must not exceed the allowable range (-10℃～45℃).

2) Place in a location free from vibration.

3) Avoid installation in direct sunlight, damp areas, or areas with water droplets.

4) Avoid installation in locations with corrosive, flammable, or explosive gases in the air.

MV900 model applications：

A、Circumferential Weld Heat Treatment‌ Control /PWHT for Girth Welds

1.The C-shaped induction coil fixture is mounted on an electrically powered cart,enabling vertical lifting and horizontal extension of the inductor via cart movement control.

2.The inductor shall incorporate an arc-adjustment mechanism to accommodate workpieces of varying diameters during heating.

B、Bucket Tooth Preheating

1.Custom medium-frequency power supply (2–25 kHz)‌: Adaptable to tooth profiles ranging from small gear teeth to mega-sized mining teeth.

2.Modular coil configurations‌: Rapid-change design enabling conformation to complex shovel tooth geometries.

3.Intelligent temperature control system‌: Infrared pyrometry + closed-loop PLC control ensuring process reproducibility (±10℃ deviation).

C、‌Rotor Thermal Removal & Installation

1.Flexible heating cable design‌:Conformable to complex structures (e.g.rotor shafts,stator bores) with 360° wraparound capability.

2.‌Fixed-coil configuration‌:Reusable for repeatable builds with >92% thermal efficiency.

3.‌Rapid uniform heating‌:Cuts disassembly/installation time by 3X+ (benchmark:40min → 12min @ Ø500mm journal).

4.‌Localized heating‌:Selective targeting of mating surfaces (bearing journals,core seats) preventing bulk thermal distortion (ΔT<30℃ gradient).

D、Flexible Heating Blanket

1.‌Flexible contouring capability‌:Heating blankets conform tightly to pipes,curved surfaces,and contoured geometries (e.g.wind turbine blades,ship welding grooves) ‌— inaccessible to rigid coils.

2.‌Custom-engineered sizing‌:Supports non-standard designs with coverage ‌from 200cm² to 50m²‌

3.Magnetic/Vectran® strap securing‌: Enables 80% faster wrap completion ‌vs manual coil winding‌.

E.‌Pipeline Preheating for Anti-Corrosion Coating‌

1.‌Deployable heating blanket solution‌:Conforms tightly to pipelines,curved surfaces,and contoured geometries. Universal pipe compatibility

2.‌Clamshell heater alternative‌:‌Pre-engineered sizing‌ for fixed pipe diameters,‌Minimizes setup time by 75% vs custom wrapping

F、‌Precision Wrapping Preheating for Flanged Joints & T Fittings

1.Conformal Wrap Heating Technology:chieves full geometric conformance on pipelines & curved surfaces,complex geometries (wind turbine blades,fossil-fuel boiler pressure parts,ship welding grooves,extruded tees)

2.Custom Cable Configuration:Heating cable lengths:10m to 60m (customizable in 5m increments)

MV900 Product accessories：

A.Output Extension Cable‌(Customizable Length per Project Requirements)：

B.Thermocouple Assembly：

C、‌Induction Coil Assembly(Customizable Length per Application Requirements)：

D、Blanket type Flexible Induction Coil：

E、‌Clamshell Fixture Induction Coil ：

MV900 System Application Cases Connection Diagram：

A.Clamshell Fixture Induction Heating Application Diagram

B.C-Frame Fixture Induction Heating Application Diagram

C.Helical Air-Cooled Induction Cable Heating Application Diagram

D.Blanket-Type Air-Cooled Induction Heating Application Diagram
